ZnSe Cilindrische Lens Laser Speciale Vorm Sphero Cilinder Lens

Plaats van herkomst Wuhan, China
Merknaam STAR OPTIC
Certificering RoHS, ISO9001
Modelnummer BCYX
Min. bestelaantal 5st
Prijs negotiable
Verpakking Details Veilige en stofvrije verpakking
Levertijd Bespreekbaar
Betalingscondities T/T, Western Union, Paypal
Levering vermogen 50000 stuks/maand

Neem contact met mij op voor gratis monsters en coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

skypen: sales10@aixton.com

Als u zich zorgen maakt, bieden wij 24 uur per dag online hulp.

x
Productdetails
productnaam Biconvexe (dubbelconvexe) cilindrische lens Type Rechthoekig of Vierkant
Ontwerp golflengte 632,8 nm Oppervlaktevlakheid N
Substraat N-BK7, UVFS en ander optisch glas Optische dunne film AR-coatings voor UV, VIS tot IR
Markeren

ZnSe cilindrische lenslaser

,

Sphero-cilinderlens ZnSe

,

cilindrische lenslaser Speciale vorm

Laat een bericht achter
Productomschrijving

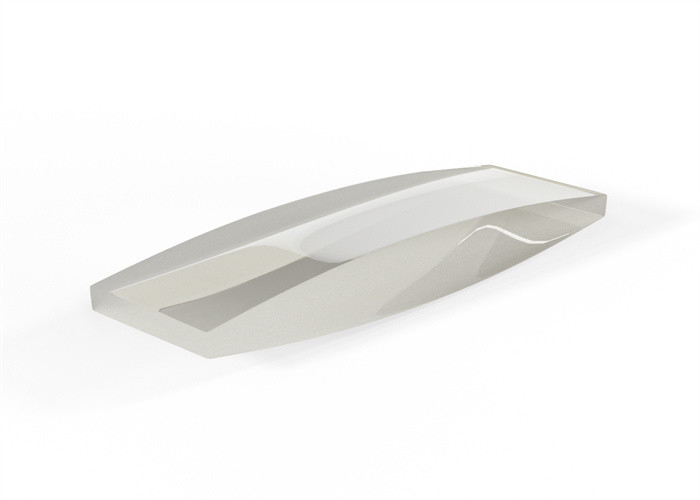

Biconvex (dubbel-convex) cilindrische lens, rechthoekig, UV Fused Silica

Overzicht:

De biconvexe (dubbelconvexe) cilindrische lenzen worden voornamelijk gebruikt om de ontwerpvereisten van de afbeeldingsgrootte te wijzigen.U kunt bijvoorbeeld een puntvlek omzetten in een lijnvlek of de hoogte van de afbeelding wijzigen zonder de breedte van de afbeelding te wijzigen.Ze kunnen worden toegepast in lineaire detectorverlichting, barcodescanning, holografische verlichting, optische informatieverwerking, computer, laseremissie.Optische cilindrische lenzen worden ook veel gebruikt in krachtige lasersystemen en bundellijnen voor synchrotronstraling.Tegelijkertijd worden de vereisten voor biconvexe cilindrische lenzen steeds hoger, vooral in krachtige laserresonatorholten en lijninterferometers voor lange afstanden en andere uiterst nauwkeurige testinstrumenten en -apparaten.







Algemene specificaties van Biconvex(Dubbel-convex)cilindrische lens:

Materiaal UV Gefuseerd Silica ZnSe Cilindrische Lens Laser Speciale Vorm Sphero Cilinder Lens 0
Ontwerp golflengte 632,8 nm
Vlakheid van het oppervlak N<3(0.5)@632.8nm
Oppervlaktekwaliteit 60/40 kras-Dig
Diameter Tolerantie +0/-0,2 mm
Dikte Tolerantie ± 0,2 mm
centreren <3 boogminuten
Brandpuntsafstand tolerantie ±2%
Helder diafragma >90%
Afschuining Beschermend <0,5 mm x 45 °







Standaard productenvan Biconvex(Dubbel-convex) cilindrische lens:

Onderdeelnr. Materiaal Y
(mm)
X
(mm)
F
(mm)
R1
(mm)
R2
(mm)
Tc
(mm)
Te
(mm)
BCYX1010F12-FS UVFS 10 10 12.7 10.88 -10,88 4.4 2
BCYX1020F12-FS UVFS 10 20 12.7 10.88 -10,88 4.4 2
BCYX1010F20-FS UVFS 10 10 20 17.72 -17.72 3.5 2
BCYX1020F20-FS UVFS 10 20 20 17.72 -17.72 3.5 2
BCYX1010F25-FS UVFS 10 10 25 22.35 uur -22.35 3 2
BCYX1020F25-FS UVFS 10 20 25 22.35 uur -22.35 3 2
BCYX2020F50-FS UVFS 20 20 50 45.03 -45.03 4.3 2
BCYX2020F75-FS UVFS 20 20 75 68 -68 3.5 2
BCYX2020F100-FS UVFS 20 20 100 90,76 -90,76 4.1 3
BCYX2020F150-FS UVFS 20 20 150 136,52 -136,52 3.7 3
BCYX2020F200-FS UVFS 20 20 200 182,25 -182,25 3.5 3
BCYX2020F250-FS UVFS 20 20 250 227,97 -227,97 3.4 3
BCYX2020F300-FS UVFS 20 20 300 273,68 -273,68 3.4 3
BCYX2020F500-FS UVFS 20 20 500 456,51 -456,51 3.2 3
BCYX2020F1000-FS UVFS 20 20 1000 913,55 -913.55 3.1 3







Coating optiesvanBiconvex(Dubbel-convex) cilindrische lens:

Normaal gesproken worden onze standaard Biconvex (Dubbel convex) cilindrische lenzen aangeboden zonder coating.

Sommige toepassingen vereisen dat lensoppervlakken een antireflectiecoating hebben om het reflectielicht van beide gezichten te minimaliseren.We bieden hieronder vier klassieke coatings en ondersteunen aangepaste ontwerpgolflengten.



Enkellaagse MgF2-coating Meerlaagse antireflectiecoating
ZnSe Cilindrische Lens Laser Speciale Vorm Sphero Cilinder Lens 1 ZnSe Cilindrische Lens Laser Speciale Vorm Sphero Cilinder Lens 2



Boradband antireflectiecoating



Anti-reflecterende coating met dubbele golflengte

ZnSe Cilindrische Lens Laser Speciale Vorm Sphero Cilinder Lens 3 ZnSe Cilindrische Lens Laser Speciale Vorm Sphero Cilinder Lens 4







Pas je eigen lens aan:

Om de mogelijkheid te maximaliseren en te verbeteren om het ontwerp om te zetten in productie en tijd te besparen, welkom om met ons te overleggen en te bespreken, zoals materiaalbeschikbaarheid, verwerkingsproblemen en kostenefficiëntie.



Zemax ontwerp

ZnSe Cilindrische Lens Laser Speciale Vorm Sphero Cilinder Lens 5
