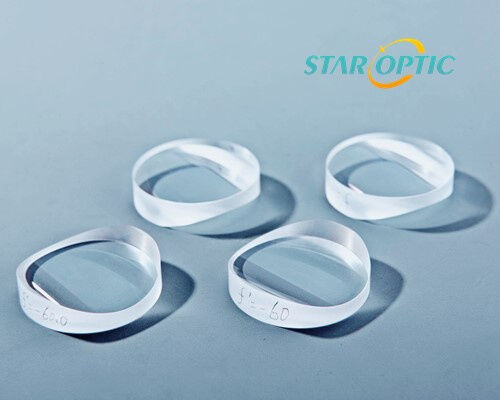

10x20 to 20x20 And Custom Optical Cylinder Lens Featuring Optical Glass Raw Material And Clear Aperture Above 90 Percent Suitable For Industrial

Product Description:

The Optical Cylinder Lens is a precision-engineered optical component designed to meet the demanding requirements of various industrial and scientific applications. This lens, characterized by its unique cylindrical shape, plays a crucial role in manipulating light for enhanced optical performance. Crafted from high-quality materials, the Cylindrical Glass Lens ensures superior durability and reliable functionality in diverse environments.

With dimensions ranging from 10x20 mm to 20x20 mm, and the added flexibility of custom sizing options, this lens can be tailored to fit specific system requirements. The standard size of the lens is 25.4 mm, making it compatible with a wide array of optical setups. This versatility is particularly beneficial for industries that require customized solutions for specialized optical tasks.

One of the defining features of this Optical Cylinder Lens is its design wavelength of 632.8 nm. This wavelength, corresponding to the red region of the visible spectrum, is commonly used in laser applications, making the lens ideal for laser beam shaping, collimation, and focusing. The precise design wavelength ensures optimal performance and minimal chromatic aberration, which is critical for maintaining beam quality and accuracy in laser systems.

The lens boasts an exceptional surface flatness of λ/4, a testament to its high-quality manufacturing standards. This level of flatness minimizes wavefront distortion and guarantees that the lens can deliver sharp, clear images and precise beam manipulation. Such surface quality is essential in applications where optical precision and clarity are paramount, including imaging systems, laser processing, and optical instrumentation.

As a cylindrical lens, it differs from traditional spherical lenses by focusing light into a line rather than a point. This unique focusing ability makes the lens indispensable in applications such as laser line generation, optical scanning, and beam shaping. The shape and curvature of the lens are optimized to ensure consistent performance across its entire surface, providing uniform light distribution and enhanced control over the light path.

The Optical Cylinder Lens is also recognized as an Industrial Lens, designed to withstand the rigors of industrial environments. Its robust construction and reliable optical properties make it suitable for integration into complex machinery, inspection systems, and automated processes. Whether used in material processing, quality control, or precision measurement, this lens delivers consistent results and long-lasting performance.

Additionally, this lens serves as an Infrared Optical Lens, capable of handling infrared wavelengths with minimal loss and distortion. This attribute broadens its applicability to infrared imaging systems, thermal sensing, and other IR-related technologies. The material and coating options available for this lens can be optimized for infrared transmission, offering enhanced efficiency for infrared optics applications.

In summary, the Optical Cylinder Lens is a versatile and high-performance optical component that combines precise dimensional options, superior surface quality, and a specialized cylindrical shape. Its design wavelength of 632.8 nm, coupled with a surface flatness of λ/4, ensures outstanding optical clarity and accuracy. Suitable for both visible and infrared applications, this lens is an essential element in industrial optical systems, laser technologies, and infrared optics. Whether customized or standard-sized, the Cylindrical Glass Lens provides reliable, high-quality performance that meets the exacting demands of modern optical engineering.

Features:

• Product Name: Optical Cylinder Lens
• Optical Thin Film: AR Coatings for UV, VIS to IR
• Surface Flatness: λ/4
• Dimension: 10x20~20x20 and Custom Sizes Available
• Feature: One Dimensional Beam Shaping
• Clear Aperture: >90%
• Compatible with Interferometer Lens applications
• Designed for use alongside Aspherical Optical Lens systems
• Suitable for integration with Auto Iris Lens mechanisms

Applications:

The STAR OPTIC Optical Cylinder Lens, model CYX, is a high-precision optical component originating from Wuhan, China. Renowned for its superior quality and reliability, this cylindrical lens is widely utilized in various optical systems and instruments. Certified by RoHS and ISO9001, the CYX lens guarantees adherence to international standards, making it an excellent choice for professional and industrial applications. With a size of 25.4mm and an anti-reflective coating, the lens ensures minimal light loss and enhanced image clarity, optimized at the design wavelength of 632.8nm.

This Optical Cylinder Lens is particularly suitable for applications requiring precise beam shaping and focusing, where achromatic optical lenses and aspherical optical lens elements are also commonly employed to correct chromatic and spherical aberrations. Its cylindrical shape allows it to focus or expand light in one dimension, making it indispensable in laser scanning, barcode readers, and optical communication devices. The lens’s high polishing quality (N<3(0.5)@632.8nm) ensures excellent surface finish and optical performance, which is critical in advanced scientific research and medical imaging technologies.

In manufacturing and testing environments, the STAR OPTIC CYX lens is often combined with front glass lenses and other optical components to build complex optical assemblies. Its robust construction and anti-reflective coating contribute to its durability and efficiency, making it ideal for industrial automation, machine vision systems, and precision measurement instruments.

Due to its versatility, the STAR OPTIC CYX Optical Cylinder Lens finds application in diverse scenarios such as laser projection systems, optical data storage, and even in augmented reality devices where beam shaping is crucial. The product’s packaging is safe and dust-free, ensuring the lenses arrive in pristine condition, ready for immediate integration into optical setups. STAR OPTIC offers a minimum order quantity of 5pcs, with a monthly supply capacity of 50,000pcs, and negotiable pricing and delivery terms. Payment can be conveniently made via T/T, Western Union, or Paypal, making it accessible for both small-scale and large-scale optical system manufacturers worldwide.

Overall, the STAR OPTIC CYX Optical Cylinder Lens is a reliable and high-performance optical component designed to meet the demanding needs of modern optical applications, blending precision engineering with excellent material quality and comprehensive certification to support a wide range of optical designs and innovations.

Customization:

STAR OPTIC proudly presents the CYX Optical Cylinder Lens, designed and manufactured in Wuhan, China. Our product is certified with RoHS and ISO9001, ensuring high quality and environmental standards. We offer customized Auto Iris Lens, Industrial Lens, and Infrared Lens solutions tailored to your specific needs.

The CYX model features exceptional optical performance with a polishing specification of N<3(0.5)@632.8nm and a surface flatness of λ/4. It operates effectively across a working wavelength range from UV and VIS to IR, with a coating wavelength range of 400-700nm, and is optimized for a design wavelength of 632.8nm.

We support a minimum order quantity of 5pcs, making it convenient for both small and large scale projects. Our packaging ensures safe and dust-free packing to protect your lenses during transit. Delivery time and pricing are negotiable to meet your project timelines and budget.

Payment terms are flexible, accepting T/T, Western Union, and Paypal. With a monthly supply ability of 50,000pcs, STAR OPTIC guarantees reliable availability of the CYX Optical Cylinder Lens for your industrial and infrared lens applications.
